Resistivity Distribution

Constructing resistivity distributions for different sediment types

This app illustrates the process of creating resistivity distributions of two sediment types: coarse-(grained)dominated and fine-(grained)domianted from colocated resistivity data (geophysics) and sediment type data (in-situ). You will identify an impact of colocation radious and an approach to set a vertical interval of colocated data (interval vs. integral).

Interactive App

From elecgtromagnetic (EM) imaging, we can obtain an image of the subsurface resistivity. While resistivity provides useful information about the subsurface hydrogeology, it is very challenging to determine hydrogeology just from resistivity. Therefore, there is a need to correlate resistivity from EM geophysics to hydrogeology. This app focuses on building relationship between

Source:Constructing resistivity distribution for sediment type

Usage

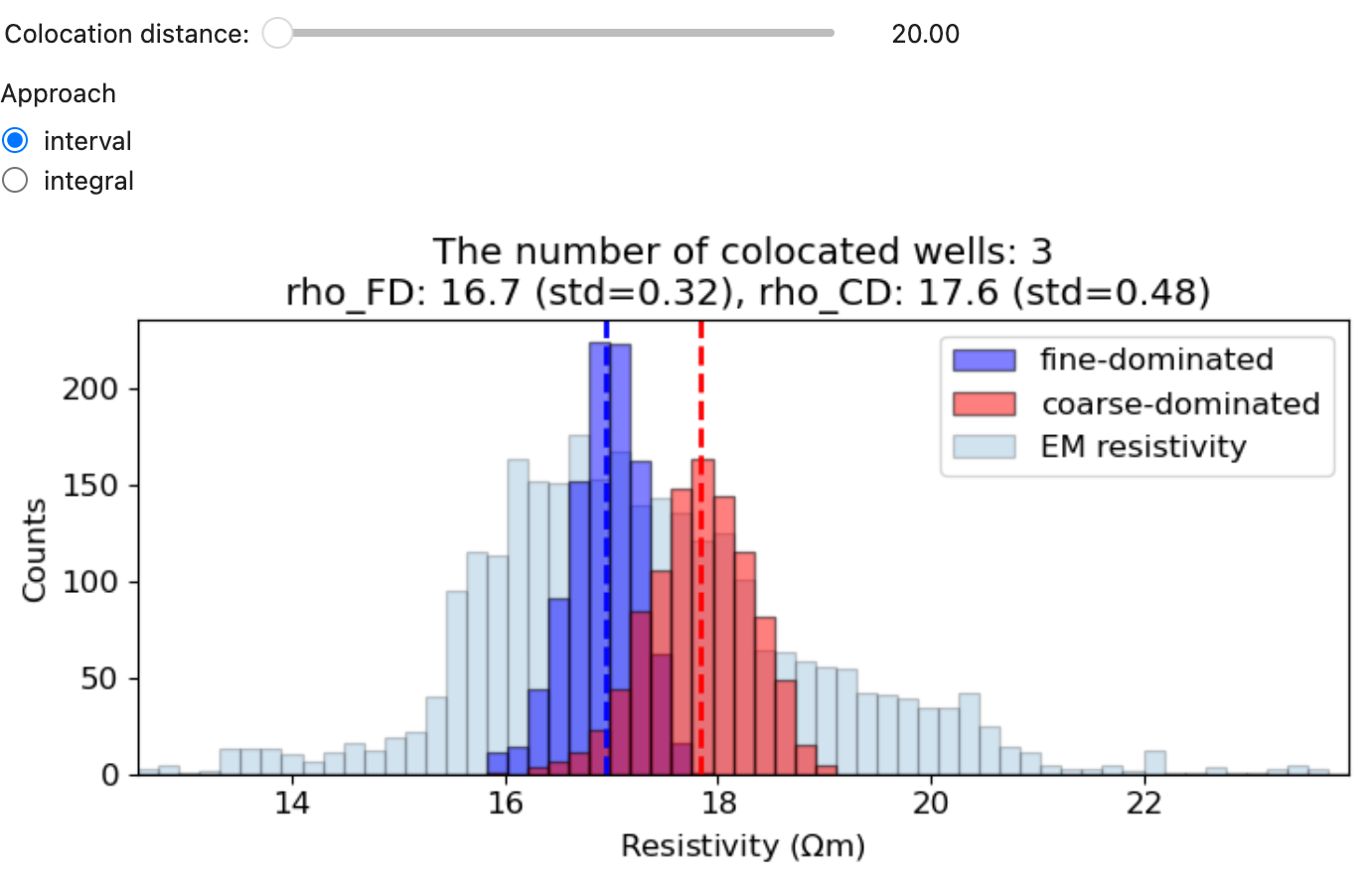

App Parameters

  • Colocation Distance: resistivity of the fine-dominated
  • Approach: interval or integral
